The urine analyzer for animals automatically gives the urine protein-creatinine ratio of dogs and cats.
Displays urine protein-creatinine ratio (UPC) in five rankings
Screening proteinuria is possible without being affected by dilution or urine concentration. UPC has a strong correlation with gross protein discharge. IRIS (International Renal Interest Society)* introduced the evaluation systems of kidney diseases according to stage classification, which indicates the highly valued significance of measuring UPC.
* Reference: IRIS Staging of CKD
Device and reagent for animals

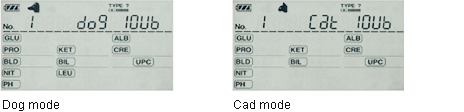

Measurement is possible in two modes (dogs and cats), which can be switched easily before measurement.
Streamline work by saving steps
Performing a visual inspection with this instrument saves the manual work required for testing. Printed test results can be pasted onto a pet's health record to explain to a pet owner.
Printer is detachable from the meter, increasing mobility inside clinics or for doctor's visits.
Multiple functions
The small body is packed with features such as colored urine correction and temperature correction.
Easy operation and maintenance
The operation is simple. Just press the start key and place a test strip on the meter. Maintenance work is also reduced.
| Sample | Urine |
|---|---|
| Target animal type | Dogs and cats |
| Measurement principle | Test strip: Dual wavelength reflectance method (one wavelength for BLD measurement) |
| Measurement wavelengths | Three LED wavelengths (565, 635, 760nm) |
| Sample application method | Manual dipping |
| Measurement capacity | 50 tests per hour |
| Compatible test strips | Urine test strips dedicated to Urine Analyzer thinka |
| Reaction time | Approximately 60 seconds per test |
| Display | Custom LCD |
| Memory capacity | 100 test results |
| External output | Compliant with RS-232C |
| Measurement environment | Temperature: 10 to 30°C, humidity: 30 to 60%RH (non-condensing) *Temperature compensation function used. |
| Dimensions | 124 (W) x 81 (D) x 36 (H) mm |
| Weight | 180g (without batteries) |
| Printer | Thermal recording printer |
|---|---|
| Printer paper | High color development thermal paper (W58 mm × Ø26 mm) |
| Dimensions | 125 (W) x 133 (D) x 36 (H) mm |
| Weight | 180g (without printer paper) |
| Power supply | AC adapter 7.5V 3A |
| Power consumption | 20W |
| Attachment | One-touch attachment |
| Connection | Contact |
